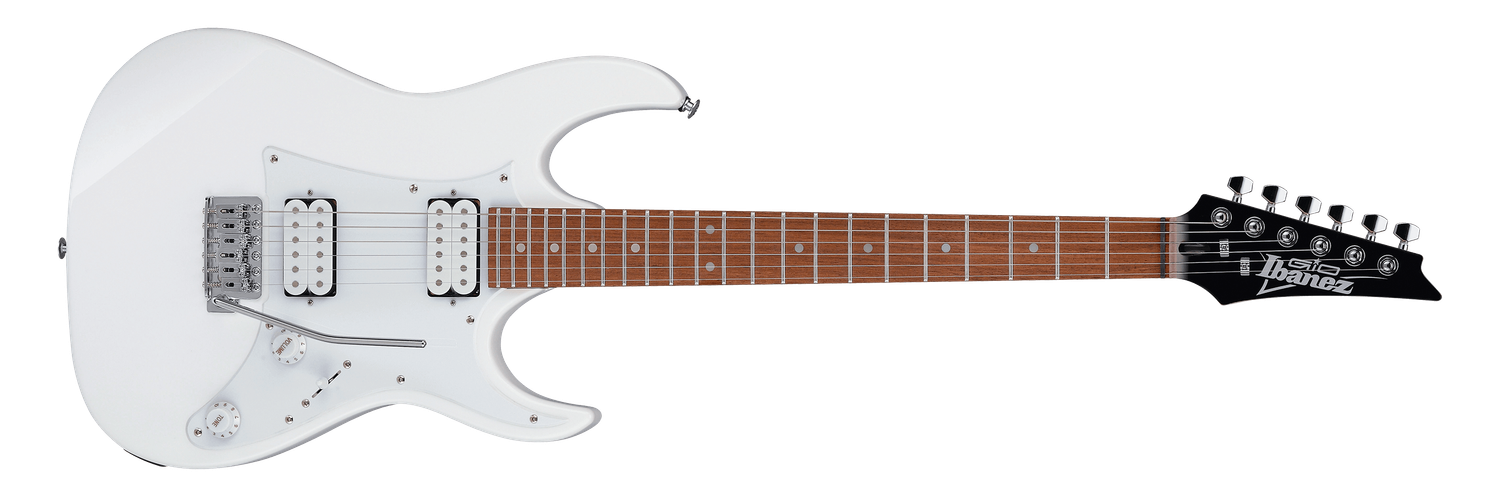

Ibanez GRX20WWH

Store/Electric Guitars

Product Details

SPECS

- neck type

  GRX Maple neck
- top/back/body

  Poplar body
- fretboard

  Jatoba fretboard White dot inlay
- fret

  Medium frets
- number of frets

  22
- bridge

  T106 bridge
- string space

  10.5mm
- neck pickup

  Infinity R (H) neck pickup Passive/Ceramic
- bridge pickup

  Infinity R (H) bridge pickup Passive/Ceramic
- factory tuning

  1E,2B,3G,4D,5A,6E
- string gauge

  .009/.011/.016/.024/.032/.042
- hardware color

  Chrome
NECK DIMENSIONS
- - Scale :

    648mm/25.5"
  - a : Width

    42mm at NUT
  - b : Width

    57mm at 22F
  - c : Thickness

    19.5mm at 1F
  - d : Thickness

    21.5mm at 12F
  - Radius :

    305mmR
- DESCRIPTION
SWITCHING SYSTEM

DESCRIPTION
CONTROLS

DESCRIPTION
OTHER FEATURES
- Recommended Case

  M300C

Features

Maple neck

The Maple neck provides stability and bright tonal character.

T106 tremolo bridge

The T106 tremolo bridge with 6 independent saddles makes precise height and intonation adjustment of each string easy.

Mono-unit output jack

The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.

Infinity R H-H pickups

Ibanez Infinity pickups deliver an accurate and tight sound with excellent dynamics. Even under heavy settings, they do not lose tonal clarity.

Jatoba Fretboard

Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.
